Short Description

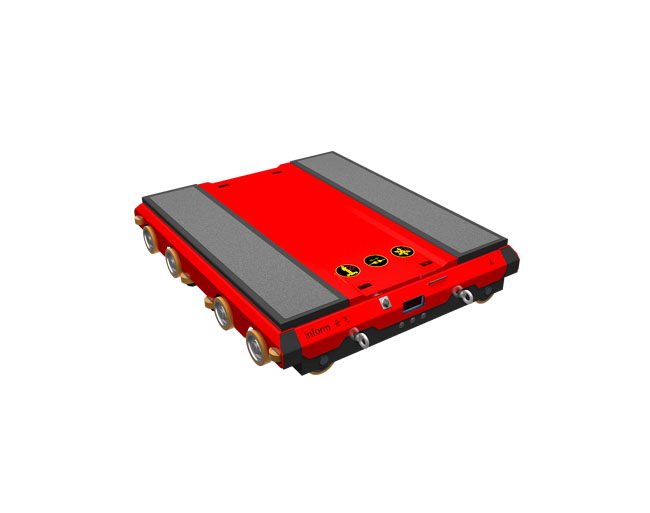

1, Four-way radio shuttle is an intelligent equipment which is applied to pallet handling.
2,
Compact racking storage system in shuttle style could maximize the
space utilization to store in high density, decrease cost and improve
flexibility
3,
Four-way shuttle system, as a kind of fully automatic storage solution,
realizes unmanned batch operation of palletized goods in 24 hours,
suited to low flow and high density storage as well as high flow and
high density storage. It is widely applied in different industries, such
as garment, food and beverage, automobile, cold chain, tobacco,
electricity and so on.
.
Product Details
Product Analysis:
①Functions
1 | Manual function | Manually operate shuttle to forward, backward, jacking, putting down, transfer direction, etc. by testing software. |
2 | Automatic in and out | Four-way shuttle performs inbound and outbound operation for pallets by scheduling software. |
3 | Automatic shifting | Four-way shuttle shifts pallets from one position to specified one in another lane by scheduling software. |
4 | Counting | Automatically count the number of lane’s pallet, and automatically count daily total inbound and outbound pallets. |
5 | Self-learning function | Automatically measure, identify data of racking and pallet, and enter parameters independently. |
6 | Charging online | - Multi-level power threshold control, self-judging and self-charging on line. - In particular cases, shuttle can be charged out of line emergently. |
7 | Alarm in low battery | When
low battery, the alarm buzzes, shuttle stops after finishing current
task, is not to accept operation instruction. It requests host computer
to charge, and back to charging position to recharge after accepting
charging order. |
8 | Status presentation | It possesses indicator light to show alarm, standby, work and so forth |
9 | Remote control | - One press to switch online and manual operation on remote control mode. - Support status monitoring and test based on mobile phone (Android) or Tablet PC (Optional, only manual mode) |
10 | System monitoring | Power on self test on device, monitoring system data in real time and alarm in sound and light in abnormal status. |
11 | Remote function | It is capable of updating and downloading program remotely (In Wi-Fi Network). |
12 | Heartbeat check | Communicate to host computer control system in real time by heartbeat check, monitoring online status |
13 | Emergency Stop | Emergency signal sent remotely when emergency, and shuttle stops instantly until emergency lifted. It is capable of guaranteeing device or goods stop safely in maximal deceleration when it executes this instruction. |
14 | Log record and upload | It is capable of recording operational log and uploading to host computer regularly. |
②What kind of goods are suitable for Four-way Shuttle storage system ?
Goods package type: | Pallets |
Goods dimension(mm): | W1200-1300xD1000-1200mm; W1400-1600xD1000-1200mm. |
Good weight: | <=2000kg |
Operation height | <=15m |
③Design, Test &Warranty
Design
Free design could be provided with the following information.
Ø Warehouse storage area Length____mm x Width____mm x Clear height___mm.
Ø Warehouse’s door position for loading and unloading goods.
Ø Pallet Length____mm x Width____mm x Height___mm x Weight_____kg.
Ø Warehouse Temperature_____Degrees Celsius
Ø Inbound and outbound efficiency: Quantity of pallets per hour_____.
Test
Four-way Shuttle will be tested before delivery. Engineer will test the whole system on-site or online.
Warranty
Warranty
is one year. Fast response within 24 hours for overseas customer.
Firstly test online and adjust ,if couldn’t repair online , engineer
will go and solve the problems on site. Free spare parts will be
supplied during the warranty time.
Project cases:
Why choose us?
Top 3 Racking Suppler In China
The Only One A-share Listed Racking Manufacturer
1. NanJing Inform Storage Equipment Group,as a public listed state controlled enterprise, specialized in the logistic storage solution field since 1997.( 26 years of experience)
2.Core Business: Racking
Strategic Business:Automatic System Integration
Growing Business: Warehouse Operation Service
3.Inform owns 6 factories, with over 1000 employees. Inform listed A-share on June 11, 2015, stock code: 603066, becoming the first listed company in China’s warehousing industry.
Q1: What’s your trading terms?
1) Payment terms: As general, T/T 30% deposit after order confirmed, 70% balance paid against BL. L/C also available.
2) Shipping port: Shanghai / Nanjing port China.
3) Discounts: we will offer the biggest discount for large quantity.
Q2: Are you a factory or trading company?
A:We are factory and have 5 factories.We’ve been in the market of logistic storage solutionssince 1997.We design,manufacture racking and assemble shuttle, four-way shuttle etc by ourselves.
Q3: Do you have OEM products to sell?
A:Yes.Both OEM and ODM are available .
Q4:Do you have the minimum order requirements?
A:Any quantity and customized design is acceptable.
Q5:Are samples available?
A:Yes. Short sections of samples can be provided for free, but the international transportation will be at the customers’ expense.
Q6:What’s the delivery time?
A:It depends on the order quantity and racking types. Generally speaking, for the standard pallet racking, it will be within 20 days.
